Linion Power Channel 230/24V 17W Black Power Supply, 1m signal

Description

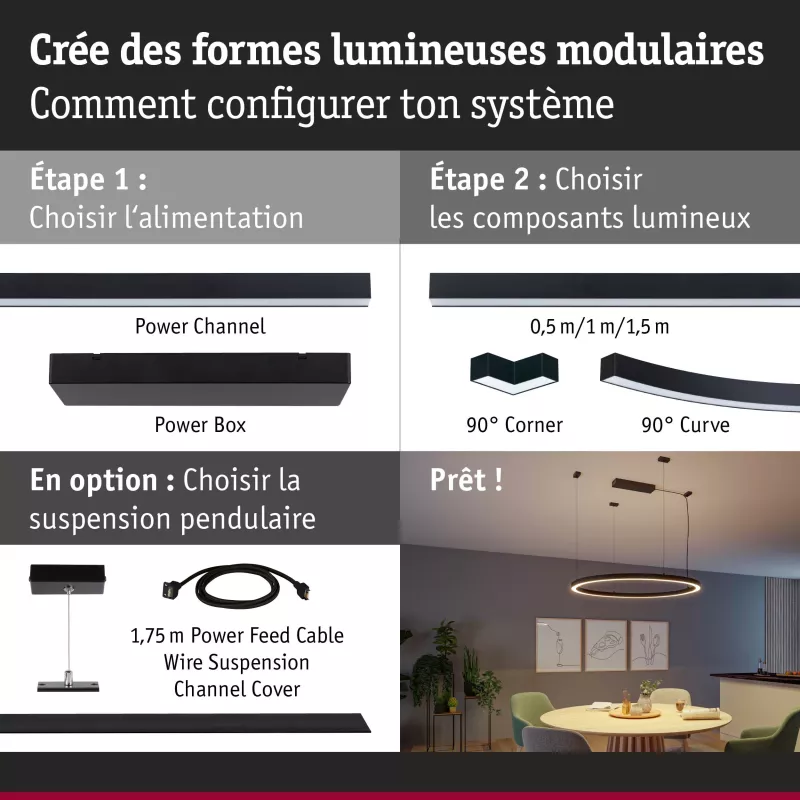

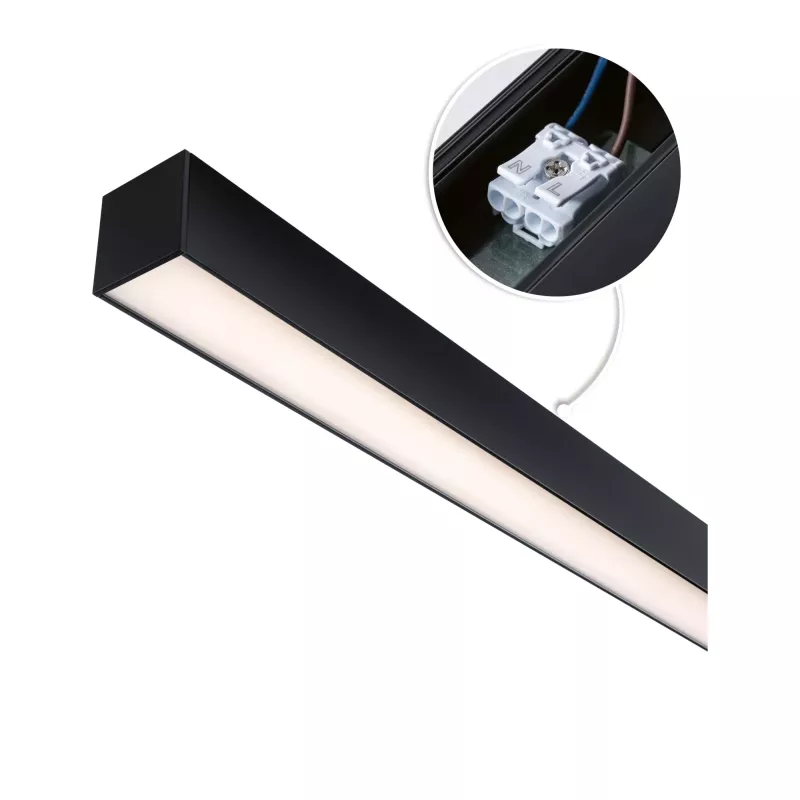

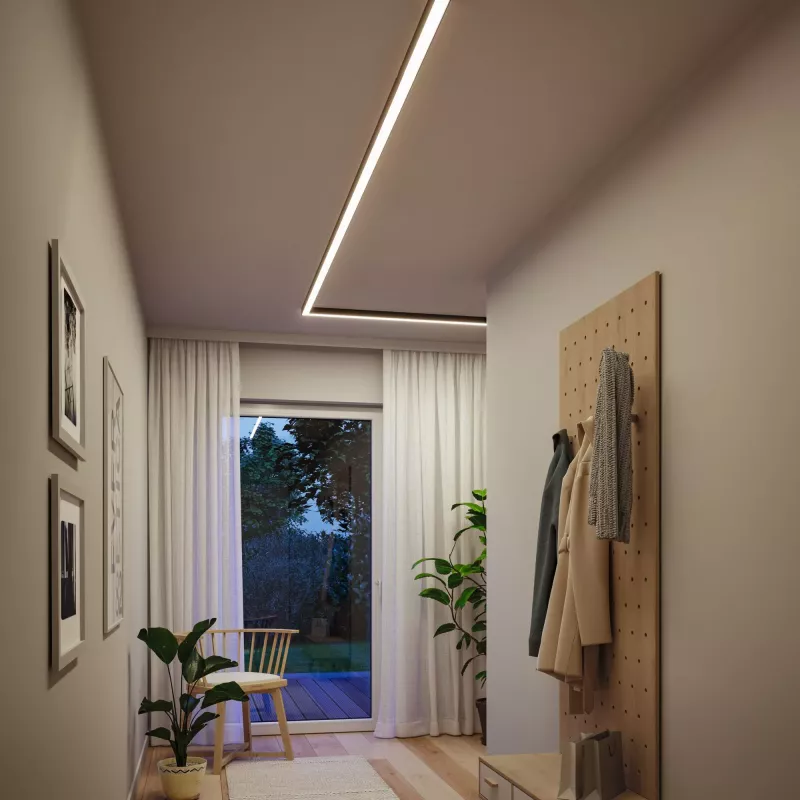

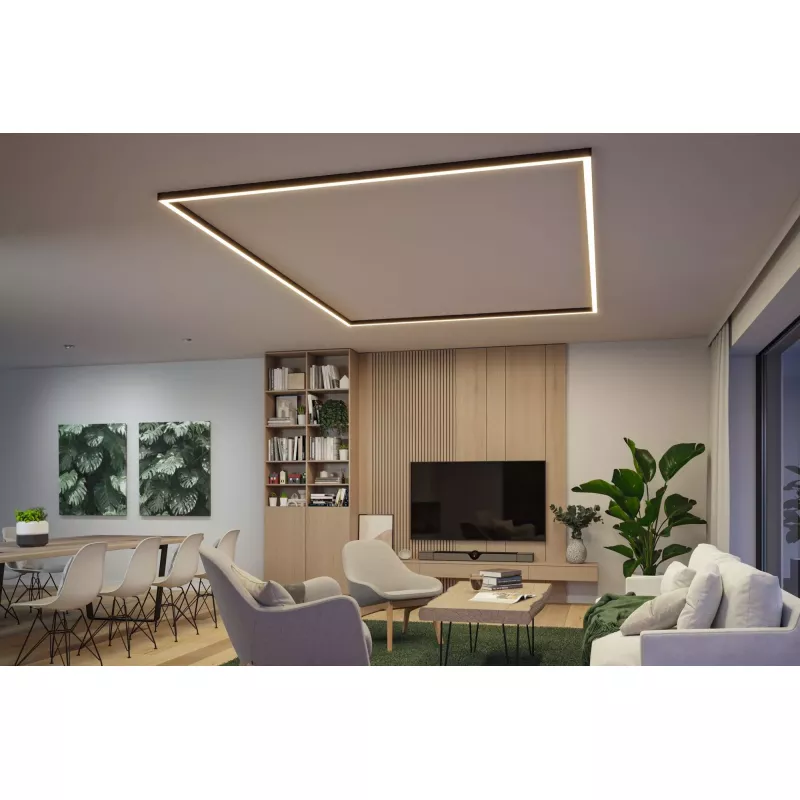

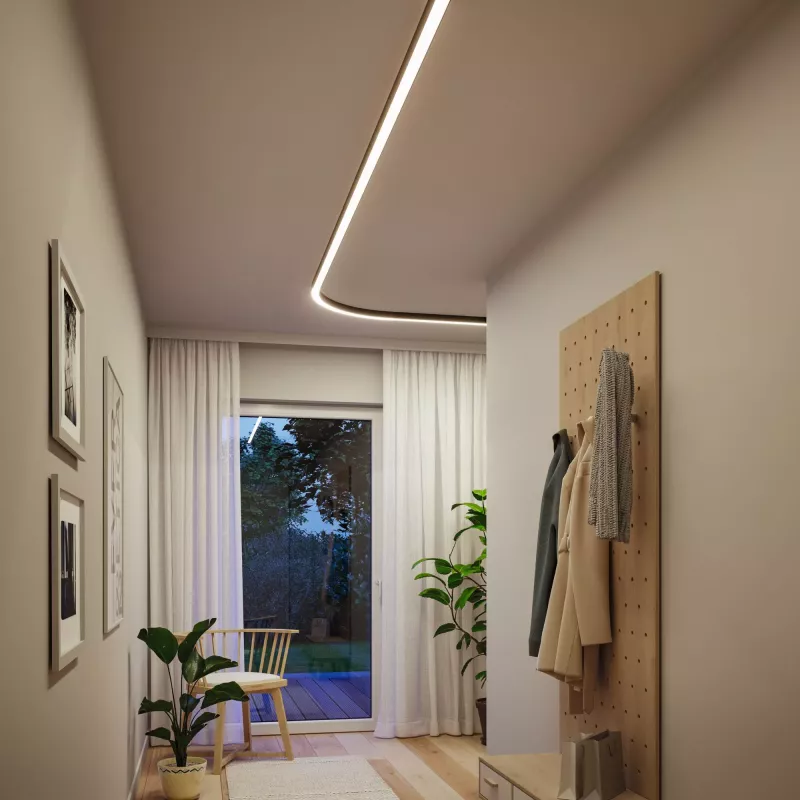

The unique Linion channel lighting system sets new standards in room lighting. The Power Channel with integrated transformer features a high-quality aluminum housing in a timeless Signal Black design. It can be mounted directly onto a standard 230V outlet. The Power Channel allows for the connection of other lighting components in the system up to 5 m and 80W on both sides. With a power consumption of 17W and a color temperature of 3000K, the illuminated channel provides a warm and bright white ambiance. Installation couldn't be simpler, as all necessary connectors and two end caps are included.

Product properties

• Power supply module for the Linion light channel system
• A maximum of 80W can be connected.

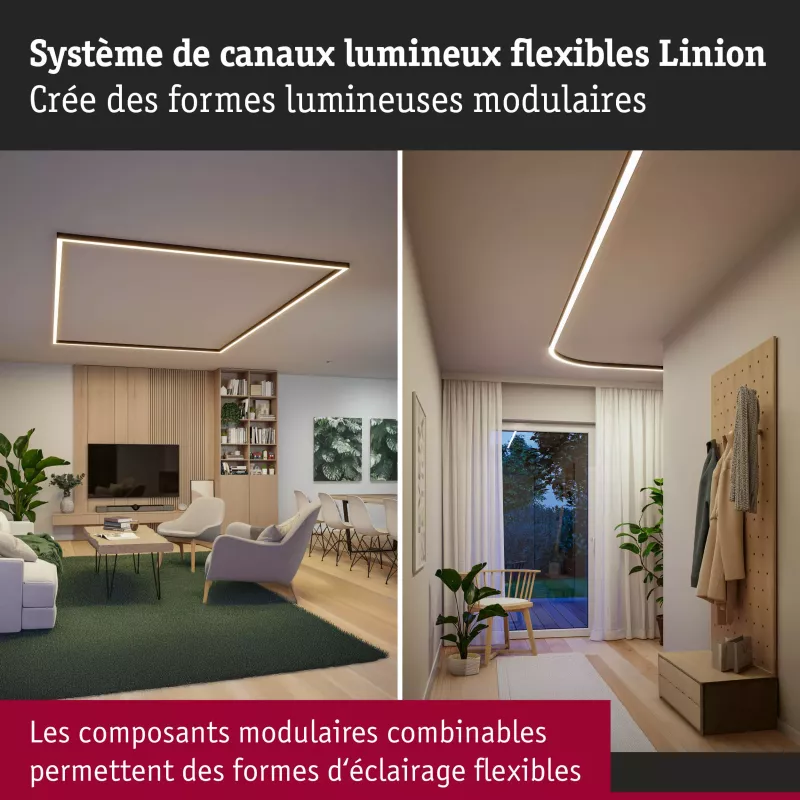

• Fluid, luminous lines thanks to modular components
• Uniform, glare-free light in l living space
• High-quality aluminum casing
• Color temperature: 3000K - Warm white

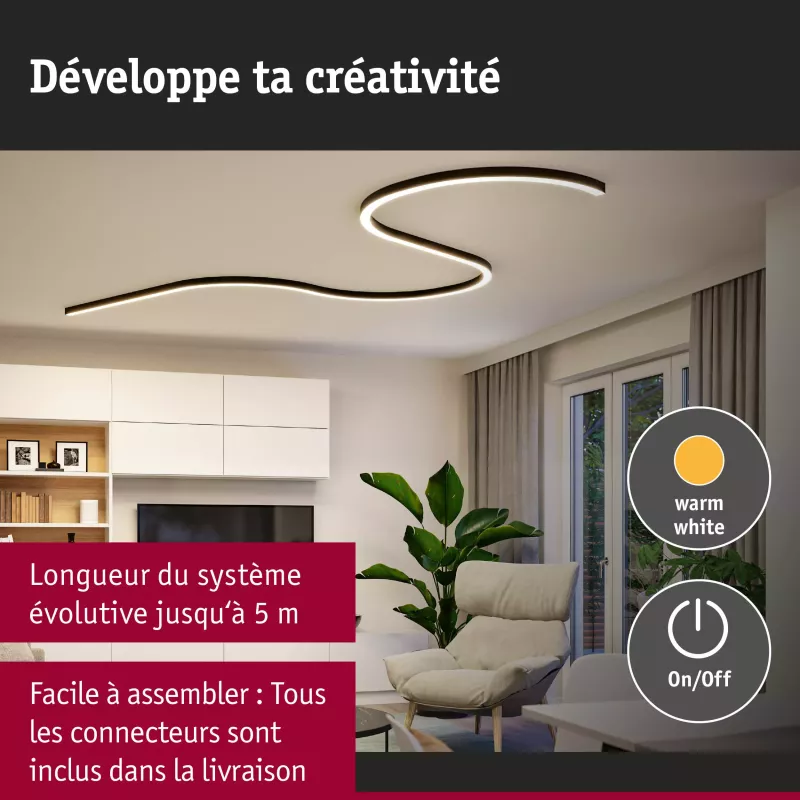

• Suitable for system lengths up to 5 m
• Included in delivery: Power supply including connectors, end caps and stability plate
• Easy assembly thanks to the "plug & play" connection

Technical attributes

• Power: 17W
• Transformer power: 100VAW
• Luminous flux: 1040 lm/ml
• Color temperature (K): 3000K
• Color temperature (name): 3000K
• Voltage: 230/24V
• Lifespan (h): 30000h
• Number of LEDs per m : 168
• LEDs per m (name): 168 LEDs/ m
• IP rating: IP20
• Color: Signal Black
• RAL number: RAL 9004
• Material: Aluminum, Plastic
• Dimensions: 40 x 40mm
• Model (variant): without zigbee
• Energy efficiency class: F
• EAN: 4000870982044
• Warranty: 5 years
