CorDuo DiscLED LED Cable System - Paulmann

Description

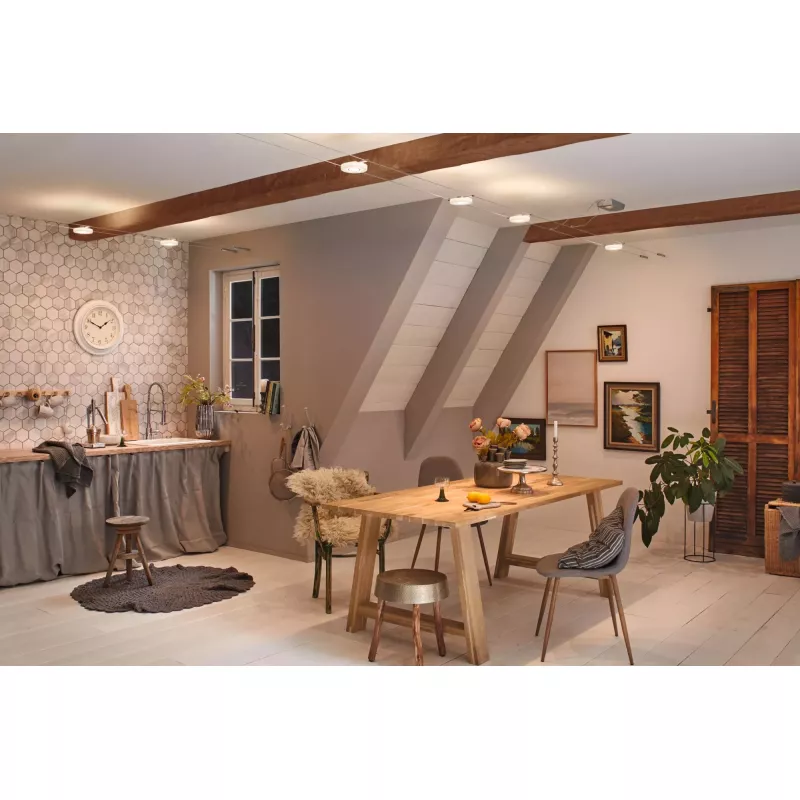

The DiscLED range in matte chrome can be installed on both walls and ceilings, offering unlimited design possibilities. Straight, angled, or narrow – the cable systems integrate seamlessly into any room and solve installation challenges. The customizable basic kit can be supplemented with individual spotlights, corner connectors, and other accessories. The m cable can be split in the middle, allowing the system to be stretched to a maximum of m . This system ensures optimal light distribution and can be easily extended if more lighting is required. Only one electrical outlet is needed to power l entire room. Systems using 12V DC (direct current) technology are not dimmable via a wall dimmer switch.

Product properties

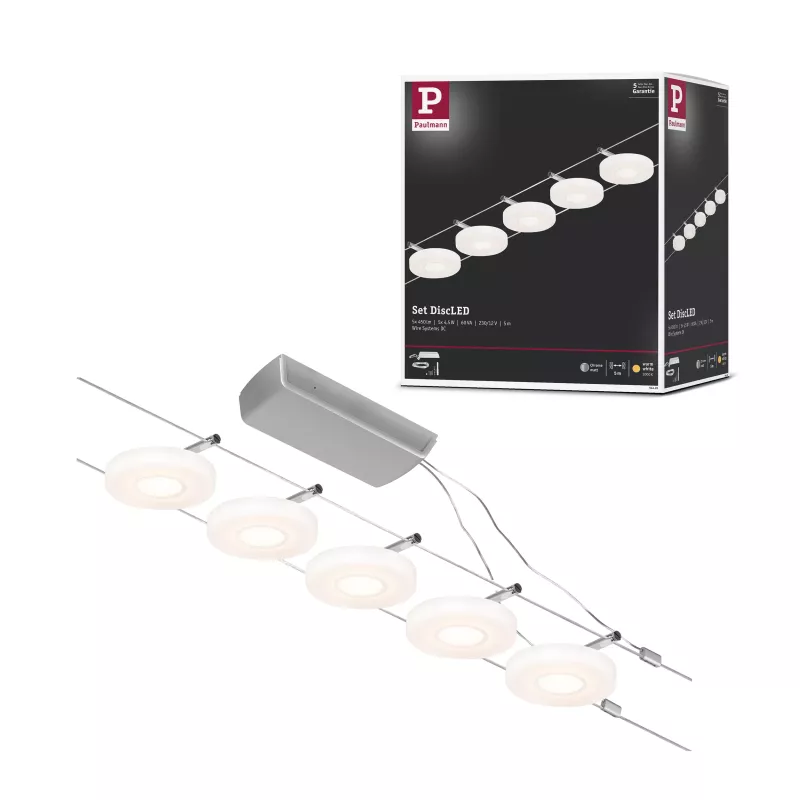

• Complete kit including transformer, cable, spotlights and assembly instructions
• For wall/ceiling mounting
• Fixed bulb
• Suitable for use with direct current voltage (12V DC) only

Technical attributes

• Power: 5 x 4.5W
• Transformer power: 60VAW
• Luminous flux: 5 x 200 lm
• Color temperature (K): 3000K
• Color temperature (name): 3000K
• Voltage: 230/12V
• Lifespan (h): 30000h
• Color: Matte Chrome, Chrome
• Material: Metal
• Dimensions: 38mm
• Diameter: 130mm
• Model (set): Basic kit
• Model (variant): 5 spots
• Incandescent lamp equivalent: 39 W
• Energy efficiency class: F
• EAN: 4000870944264
• Warranty: 5 years

• Assembly instructions (PDF)
• Technical specifications (PDF)
