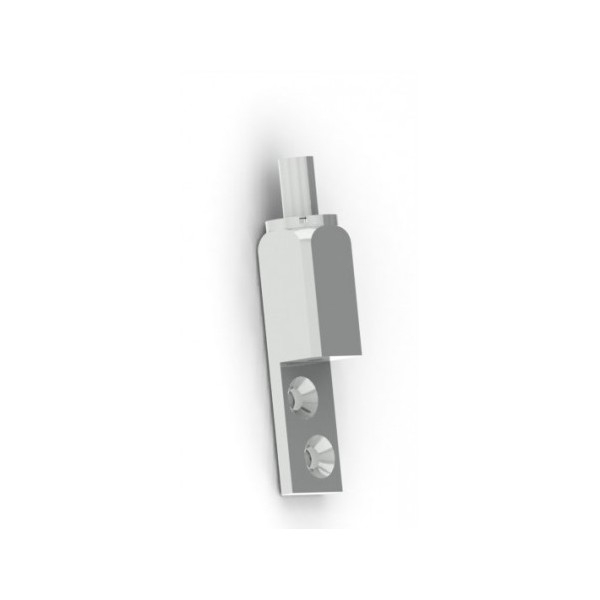

Self-locking hook Coulistop 30 kg

Platinum Coulisstop 18 is provided with a flu. This system allows to move the plate along the cable by simple pressure on the top of the hitch (piston).

Without pressure on the plate, it no longer slides.

The use of the cable allows security and quick installation. The cable used is solid and requires a powerful tool to be cut.

Maybe positioned on perlon cable but the load will be less.

Perfect for hanging frames, tables, mirrors less than 30 kg. It attaches itself directly to the frame, support, wooden or aluminum.

Properties

• For steel cables Ø 1 to 2 mm.
• Maximum static load supported 30 kg.
• Nickel brass.
• Self-locking.
• Unlock by simple pressure on the top of the flu.
• Don't mark the cable.
• Simple and fast mounting of exposures on cables.
• Quick adjustment of the height of the works.
• Small 10 mm wall offset.
• Attaches directly to the frame or chassis.
• Cable exit under the plate.
• Dimensions: 46 mm x 10 mm x 10 mm.

Applications

• Ideal for supports not equipped with hanging systems (rings, bridges, splints).
• Fixed on the wooden support with 2 screws of Ø 3 mm milled head.
• Fixed on aluminium support with 2 self drill screws of Ø 2.9 mm milled head.
• Allows the loan of works the system is already positioned for cable suspension.
